商品の詳細:
|
| 製品名: | ケーブル・コンベヤ | サイズ: | 974mm x 622mm x 466mm |
|---|---|---|---|
| 電源: | 380V/220V | 最大引力: | 2.5T |

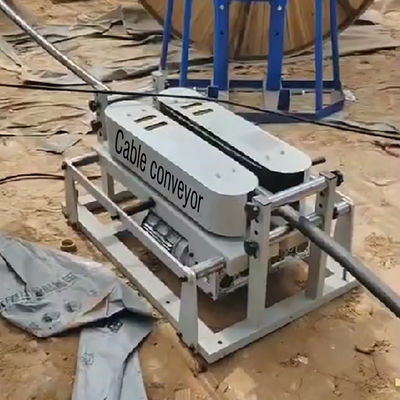

Long-distance Power Cable Laying Machine is an electric machine for laying power cables (or communication cables). It can be used in conjunction with cable pulling machines, hoists and other cable laying equipment, and the construction is convenient and fast, which can greatly save manpower and material resources, thereby effectively reducing construction costs.
Pipe Conveying Machine Long-distance Power Cable Laying Machine ( cable conveyor ) is suitable for large-scale urban power grid transformation, suitable for large-section and long-distance cable laying, reducing labor intensity and improving construction quality.
| Product Name | JY-200 Cable conveyor |
| Power Supply | 380V/220V |
| Control Mode | Remote control + control panel |
| Power | 2.2kW*2 |
| Maximum Pulling Force | 2.5T |
| Cable Diameter | 1-21cm |
| Dimensions | 974mm x 622mm x 466mm |
| Net Weight | 141kg |
| Packing size | 100*70*55cm |
| Packing weight | 160kg |
