商品の詳細:
|
| Product name: | Fiber Optical Power Meter | Function: | Measuring optical power |
|---|---|---|---|
| Wavelength range: | (800~1700)nm | Connector: | ST FC/SC(General) |
| Detector Type: | lnGaAs | Measurement Range: | (-70~+6) (-70~+10) (-50~+26) |
| ハイライト: | 5G optical power meter,rechargeable fiber optic meter,FC connector power meter |
||
Optical power meter is an instrument used to measure optical power. It can be used for both direct measurement of optical power and relative measurement of optical attenuation. It is an essential basic test instrument in the research, development, production, construction, and maintenance of optical fiber communication systems.
| Wavelength range | (800~1700)nm |

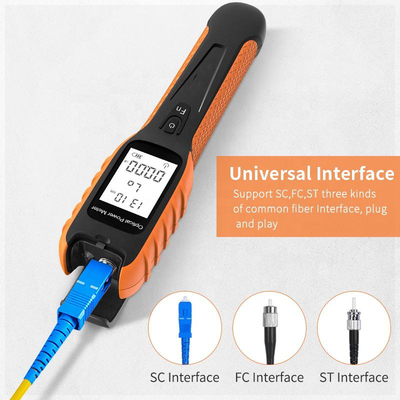

| Connector | ST FC/SC(General) |
| Detector Type | lnGaAs |
| Measurement Range | (-70~+6)(-70~+10)(-50~+26) |
| Output wavelength | 850nm 980nm 1270nm 1300nm 1310nm 1490nm 1550nm 1577nm 1625nm |
| Static current | ≦18uA |
| Operating current | ≦25mA |
| Power supply | Rechargeable lithium batteries 350mA |
