KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter

顧客の検討
私は異なった工場にFongkoのメリーだけができるだけ専門速く、ように私に答えた、照会を送った。彼女は疑いに私が必要とした助け答え。与えられた情報は非常に明確であり、価格設定は適度だった。私達が受け取ったプロダクトの質は広告した物と同じ、完全である!

—— Wesley

Fongkoは中国の種類の最もよい会社の1つである、それらが持っている光ファイバープロダクトの広い範囲は独自で作り出される、従って価格優位性があることを意味する。全面的それらは大きいチームである。

—— アレキサンダー

私はFongkoの工場にの前に行ったことがある、実際にきれいである、また日本およびドイツの工場整頓されていた同様にきれい。

—— Freddie

あなたのプロダクトの質は悪くない、一方では、包装は完全である。

—— オリビア

オンラインです

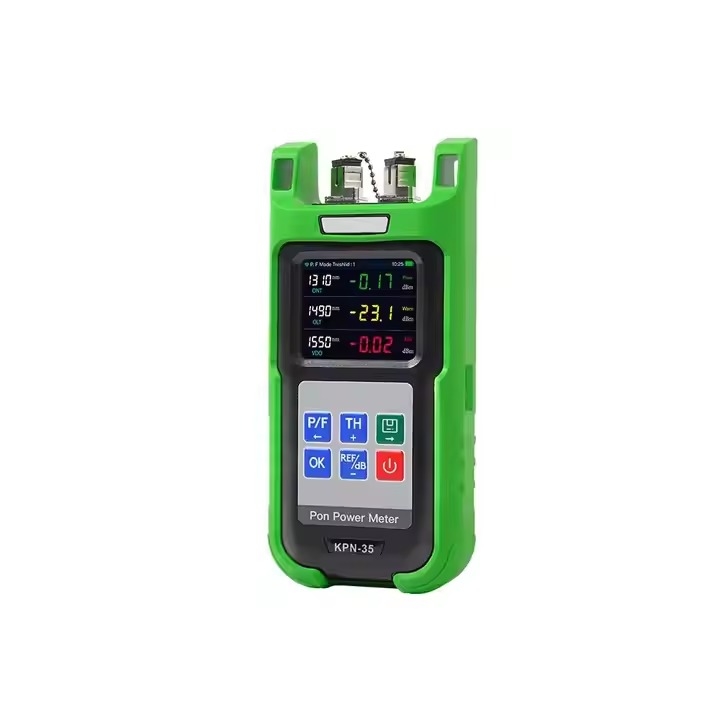

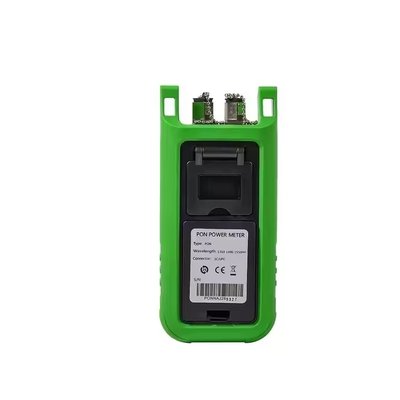

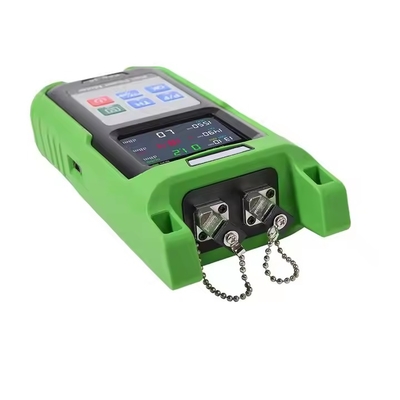

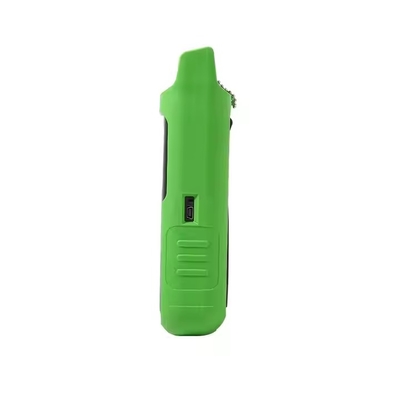

KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter

KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter

大画像 :  KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter

商品の詳細:
Place of Origin: China
ブランド名: No
証明: RoHS
Model Number: FKEQU-320
お支払配送条件:
Minimum Order Quantity: 1
価格: Negotiatable
Delivery Time: 4-6 working days
Payment Terms: T/T, L/C

KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter

説明
Product name: Pon Power Meter Type: Testers &Tools, Testers &Tools
Operating Temperature(℃): -10~+50℃ Weight: ≤ 1KG



KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter


Model
PON
Measurement wavelength
1310 nm
1490 nm
1550 nm
Sensor Type
InGaAS
Linearity
± 0.2dB @ 1550nm ≥-40dBm
Isolation with filtering function
1490nm wavelength > 40dB
1310nm wavelength > 40dB
1310nm wavelength > 40dB
1550nm wavelength > 40dB
1550nm wavelength > 30dB
1490nm wavelength> 30dB
Test range
-40dBm ~ +16dBm
-50dBm ~ +16dBm
-50dBm ~ +23dBm
Insertion loss in through mode (dB)
Less than 1.5dB
Measurable optical frequency broadband
1260~1360
1480~1500
1539~1565
Inherent uncertainty
0.5dB ± 1nW @ 1550nm
Display resolution
0.01 dB
Threshold setting
5 groups are set by the host
Calibration wavelength
1310nm/1490nm/1550nm
Data storage
900 items
Operating temperature
-10℃~+50℃
Relative humidity
0% ~ 95% relative humidity
Interface Type
SC/UPC (other types can be customized)
power supply
3 AA batteries





KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 0KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 1KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 2KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 3






About Us
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 4
Shenzhen Fongko Communication Equipment Co.,Ltd
Shenzhen Fongko Communication Equipment Co.,Ltd is a professional high technology enterprise which engages in researching,developing and sales of various kinds of devices and accessories for optical fiber transmissions system including Optical Fiber CableOptical Fiber Patch cord and Pigtail,POF(Plastic Optical Fiber patch cord), Optical Fiber Adapter,Optical FiberAttenuator,Optical Fiber Terminal Box,Fiber Optic Cross Connection Cabinet,Fiber Distribution Box, Fiber Distribution Frame (ODF) Media Converter, Fiber Optic Transceiver,Optical Fiber Splitter,Coupler,(D)WDM (Wavelenath Division Multiplexing),EDFA(Erbium-doped Optical Fiber Amplifier),Digital Video Optical Multiplexer, Instruments and Tools etc.

Our company has already established business relationship with customers from Eastern & Western Europe,South& North America.Central Asia.and Africa and so on.
Our Advantages
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 5
Team Photo
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 6
Certificate
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 7
Production Flow
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 8
PACKING&SHIPPING
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 9
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 10
KPN-35 PON 1310 1490 1550nm Optical Pon Power Meter Fiber Power Meter 11
FAQ
1. What is your MOQ?
Answer: 1

2. Can I print my own design on the product?
A: Yes, we can make customized products and logos according to customer needs.

3. Can the price be reduced? Is there any discount?
A: The price can be reduced, the price can be negotiated.

4. Can I get free samples?
Answer: Yes

5. How do we pay? Shipping method?
A: T/T payment is the main method, and the payment method can be negotiated; express, sea or air.

6. What is the delivery time for our samples and orders?
A: 1~2 days for samples, delivery time is negotiated.
